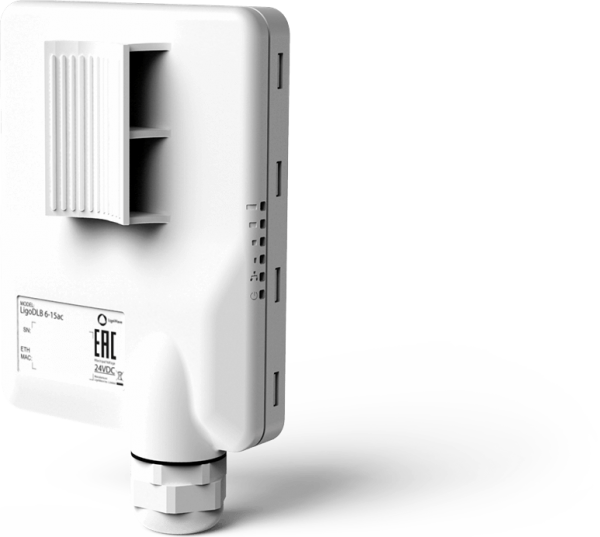

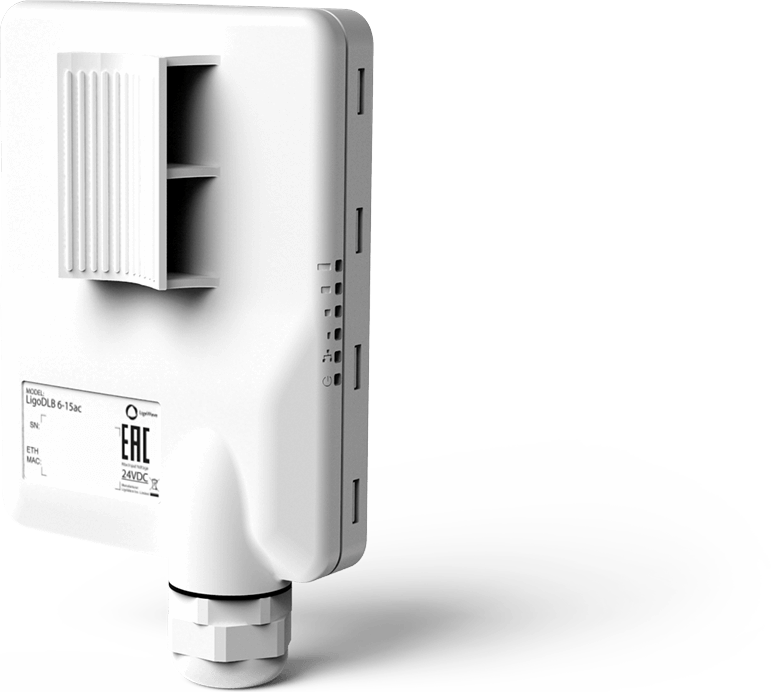

LigoDLB 6 -15ac

$530,00

Category:

Description

6GHz Wireless Outdoor Device

Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the LigoDLB 6-15ac brings efficiency to the next level. The state-of-the-art RF design with an integrated 15dBi antenna delivers great output power, improves range, and enables high-capacity transmission over 256-QAM. +500Mbps of throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the LigoWave iPoll 3 Proprietary Protocol.

6GHz Wireless Outdoor Device

Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the LigoDLB 6-15ac brings efficiency to the next level. The state-of-the-art RF design with an integrated 15dBi antenna delivers great output power, improves range, and enables high-capacity transmission over 256-QAM. +500Mbps of throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the LigoWave iPoll 3 Proprietary Protocol.

iPoll 3: Enhanced Performance Protocol

LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in  wireless PTMP installations.

Integrated Surge Protection

3kV line-to-ground and 1kV line-to-line protection allows operation under harsh weather conditions and unstable electrical installations.

LigoWave OS

LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design. The LigoDLBac Series are backward-compatible with LigoDLB devices through the iPoll 3 Proprietary Protocol.

Specification

5.900 – 6.400 GHz support
500Mbps+ capacity
High power (30 dBm) radio
Proprietary protocol (iPoll)
Zero loss design
Integrated surge protection
Integrated Dual-Polarized 15dBi Directional Panel Antenna

Distance Recommendations:
PTP mode: 7km / 4.3mi
PTMP mode: 5km / 3.1mi
Interfaces:
1×1000 Base-T (passive PoE 24V)
